Accessories
Our most popular nozzle tips and
accessories for Utility & Squeeze
Tube grease guns:

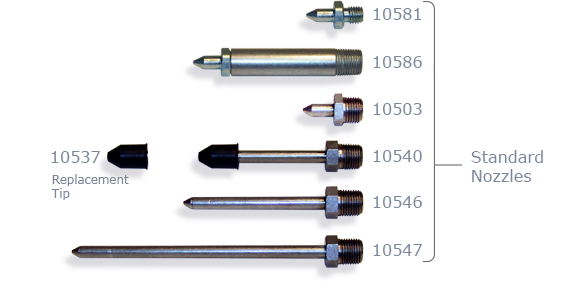

Standard Nozzles
| Model | Discription | Length |
Connetion |
|---|---|---|---|
| 10581 | Hardened Tip Nozzle replacement for Extension 10586 | 13/16" |
1/4"-28 threaad |
| 10586 | Hardened Tip Nozzle for all flush type fittings & hard to reach places | 2-1/2" |
1/8" NPT thread |
| 10503 | Hardened Tip Nozzle for all flush type fittings. • Replacement for all Push & Squeeze tube guns & accessories using 1/8" NPT thread. | 13/16" |
1/8" NPT thread |
| 10540 | Rubber Tipped Nozzle on stainless fitting | 2-1/2" |
1/8" NPT thread |
| 10546 | Narrow Stainless Tip for all flush type fittings & hard to reach places | 2-1/4" |
1/8" NPT thread |
| 10547 | Narrow Stainless Tip for all flush type fittings & hard to reach places | 4-1/2" |
1/8" NPT thread |
| 10537 | Replacement Rubber Nozzle Tip. 1/16" diameter outlet. | 5/8" |
Friction Fit |

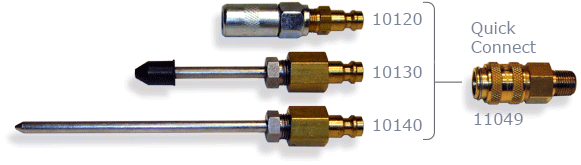

Quick Connect
| Model | Discription | Length |
Connetion |
|---|---|---|---|
| 10120 | Hydraulic Coupler with 3 jaw built-in ball check outlet. 5,000 psi rated | 2-3/8" |
Quick Connect |
| 10130 | Rubber Tipped Nozzle on stainless fitting | 3-1/2" |
Quick Connect |
| 10140 | Narrow Stainless Tip for all flush type fittings & hard to reach places | 5-1/2" |
Quick Connect |
| 11049 | Quick Connect Adapter Fitting | 1-1/2" |
1/8" NPT thread |

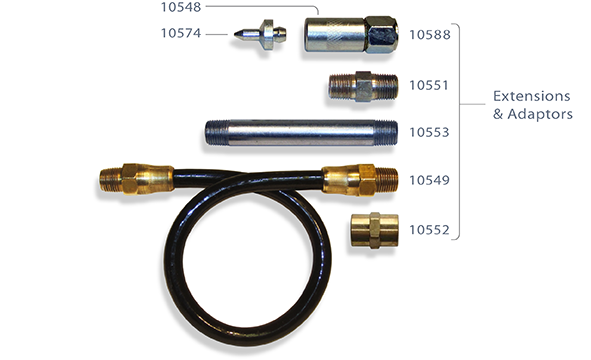

Extensions & Adaptors
| Model | Description | Length |
Connection |
|---|---|---|---|
| 10548 | Hydraulic Coupler • Three jaw with built-in ball check. 5,000 psi rated | 1-7/16" |
1/8" NPT thread |
| 10574 | Nozzle Adaptor for Hydraulic Couplers. For all flush type grease fittings | 27/32" |
Hydraulic snap-on |
| 10588 | Needle/Hydraulic Coupler Nozzle Combo. (10574 + 10548) | 2" |
1/8" NPT thread |
| 10551 | Pipe Nipple Male • Use to assemble 10558 & other accessories. | 3/4" |
1/8" NPT thread |
| 10553 | Pipe Nipple Male • Use to assemble 10558 & other accessories. | 3" |
1/8" NPT thread |
| 10549 | Flexible Extension Hose for hard to reach places. • 2500 psi Max. | 12" |
1/8" NPT thread |
| 10552 | Pipe Coupling with Hex. • Female both ends | - |
1/8" NPT thread |
All of these accessories are designed to work with both The Original Utility and Squeeze Tube grease guns. Our products are highly modular in design, making it easy to precisely create the lubrication tools you need.
DUALCO has been producing Professional lubrication products since 1960. Products are made and assembled in the USA. • 100% repairable and recyclable.
